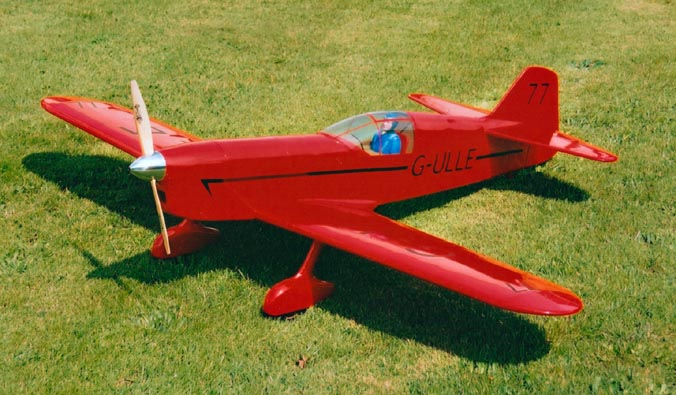

Chorus Gull Key Data

			(Built from the Nexus Plan)

	NICd Power	LiPo Power	LiPo Power (re-geared)	*Float Conversion	**Motor Swap
Airframe
Wingspan	61.5in	61.5in	61.5in	61.5in	61.5in
Weight	6lb	4lb 15oz	4lb 15oz	5lb 14 oz	5lb 14oz
Wing Area	600 sq ins	600 sq ins	600 sq ins	600 sq ins	600 sq ins
Wing Loading	23oz/sq ft	19oz/sq ft	19oz/sq ft	22.5oz/sq ft	22.5oz/sq ft
Power System
Motor	Aveox 1406/4Y and MAT 3.6:1 gearbox	Aveox 1406/4Y and MAT 3.6:1 gearbox	Aveox 1406/4Y and MAT 3.0:1 gearbox	Aveox 1406/4Y and MAT 3.0:1 gearbox	XYH5055/06 - 580kv
Battery	14 x 2400mah NiCd	4 x 3700mah LiPo	4 x 3700mah LiPo	4 x 3300mah LiPo	4 x 3300mah LiPo
Propeller	Zinger 14 x 10	Zinger 14 x 10"	Zinger 14 x 10"	Zinger 14 x 10"	APCe 13 x 6.5"
Performance	5300rpm at 27amps	5000rpm at 21.5amps	5600rpm at 35amps	5600rpm at 35amps	8000rpm at 37amps
Power loading	70W/lb	62.7 W/lb	100 W/lb	84W/lb	89W/lb
Calculated Thrust	4lb 7oz	4lb	4lb 14oz	4lb 14oz	5lb 6oz

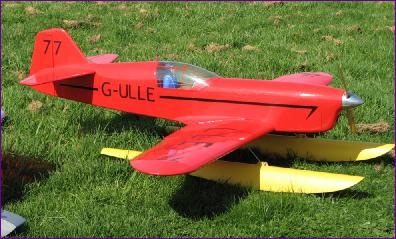

*For more details of the float conversion, click here.

**For more details of the motor swap, click here.
